Extensions

#Action

An action UI extension is designed to perform external tasks in the background. Please note the following key points regarding its functionality:

  • Single execution: An action cannot be executed multiple times simultaneously. This ensures that tasks are processed in a controlled manner.
  • Menu deactivation: During the execution of an action, the associated menu will be deactivated to prevent further interactions until the task is complete.
  • Notification on completion: A notification will appear once the external server responds to the request, keeping users informed of the task's status.
  • Timeout: The PIM HTTP client that communicates with the destination is configured with a timeout of 5 seconds.
  • POST HTTP method: The request being sent to the destination is a POST request.
  • Signature: It's possible to configure a secret to sign the body of the POST request sent to the destination (SHA-512 protocol).

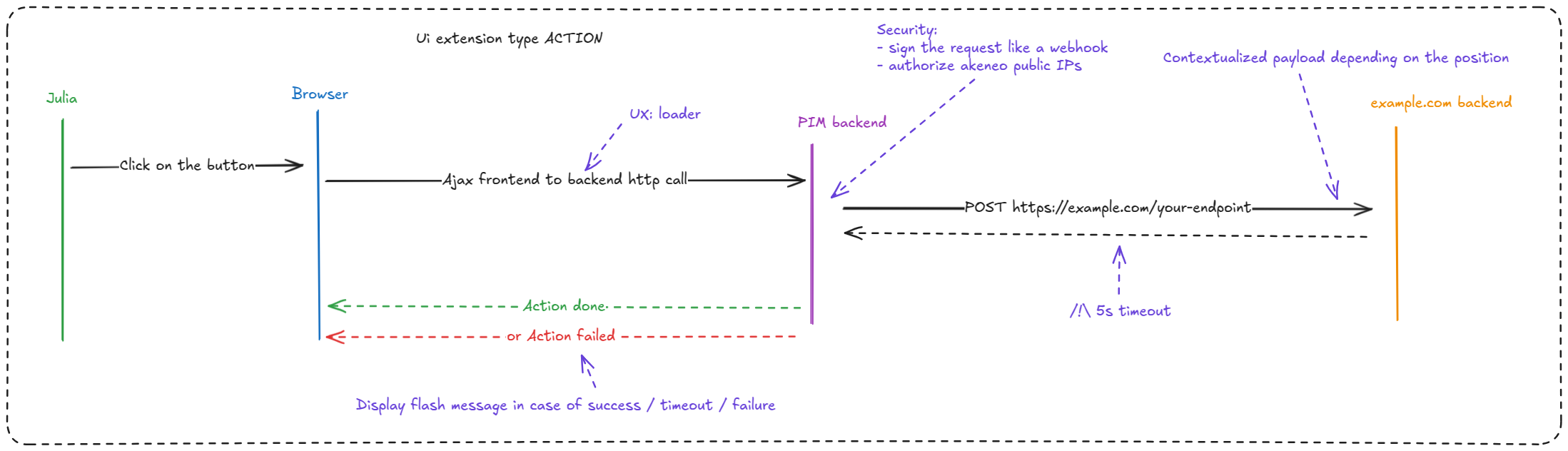

Here is a diagram illustrating the workflow: action-extension-schema.png

Data sent within the POST body, formatted in JSON, contain:

  • A data object with different fields depending on the position.
  • A context object containing:
    • the configured locale,
    • the configured channel,
    • the configured category (only available for product grid actions).
  • A user object containing the uuid, username and groups of the connected user.
  • A timestamp that can be used with a secret to help you to protect your server against replay attacks.

From the position pim.product.header, the data object contains:

  • A productUuid string field

From the position pim.product-model.header, the data object contains:

  • A productModelCode string field representing the root model code.

From the position pim.sub-product-model.header, the data object contains:

  • A productModelCode string field representing the sub model code.

From the position pim.product-grid.action-bar, the data object contains:

  • A productUuids field which is an array of string representing the UUIDs of selected products
  • A productModelCodes field which is an array of string representing the codes of selected product models and sub models

From the position pim.product.index, the data object is empty.

Examples :

{
      "data": {
        "productUuid": "ecfddba2-59bf-4d35-bd07-8ceeefde51fd"
      },
      "context": {
        "locale": "en_US",
        "channel": "ecommerce"
      },
      "user": {
        "uuid": "e05cc457-b8ac-43b1-baa7-c4c112091ad8",
        "username": "julia",
        "groups": [
          "Manager",
          "All"
        ]
      },
      "timestamp": 1739948408
    }

{
      "data": {
        "productUuids": [],
        "productModelCodes": ["armor", "apollon"]
      },
      "context": {
        "locale": "en_US",
        "channel": "ecommerce",
        "category": "master_men_blazers_deals"
      },
      "user": {
        "uuid": "e05cc457-b8ac-43b1-baa7-c4c112091ad8",
        "username": "julia",
        "groups": [
          "Manager",
          "All"
        ]
      },
      "timestamp": 1739948408
    }

#Available Positions

Action extensions can be placed in:

Position Context Data Sent
pim.product.header Single product productUuid
pim.product-model.header Root product model productModelCode
pim.sub-product-model.header Sub product model productModelCode
pim.product-grid.action-bar Multiple products/models productUuids[], productModelCodes[]
pim.product.index Product list page No product data

#Limitations

  • 5-second timeout: Your endpoint must respond quickly
  • No retry mechanism: Failed requests are not automatically retried
  • No progress updates: Users don't see real-time progress
  • 500 item limit: Grid actions limited to 500 products/models
  • Single execution: One action at a time per extension
